Product Name：CH-LFA Double flange weighing sensor
Product Features：THE CH-FLA is made of high-quality alloy steel, featuring high precision, high stability, easy installation and fast speed.Suitable for tensile and compressive testing occasions, material mechanics testing machine and other force measurement.
Range：300kN(30t)、500kN(50t)、600kN(60t)、1000kN(100t)、1500kN(150t)、2000kN(200t)、3000kN(300t)

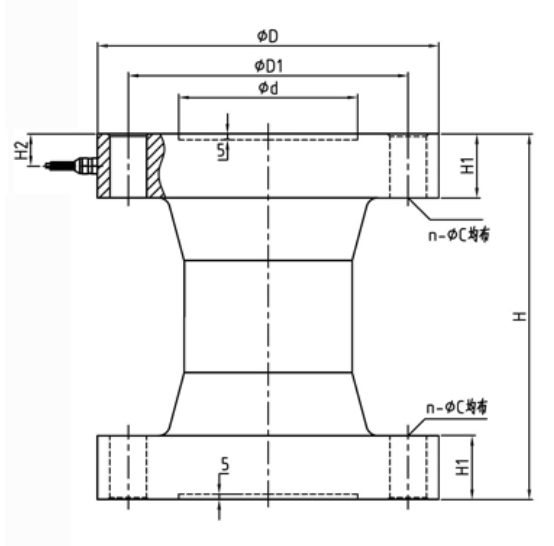

Dimensions：
|
Range（kN） |
Range（t） |
|
D |
D1 |
d |
H |
H1 |
H2 |
N-φC |
|
300 |
50-200 |
mm |
145 |
120 |
85 |
130 |
22 |
15 |
12-?16 |
|
500,600 |
300 |
mm |
197 |
160 |
110 |
160 |
25 |
15 |
12-?22 |
|
1000 |
500 |
mm |
240 |
200 |
135 |
230 |
42 |
28 |
12-?26 |
|
1500-2500 |
700-1500 |
mm |
305 |
250 |
160 |
326 |
57 |
45 |
12-?33 |
|
3000 |
300 |
mm |
415 |
360 |
256 |
358 |
69 |
50 |
18-?33 |
Specifications：
|
Specifications |
|
|
|
|
Rated Output |
2.0mV/V±0.1% |
Input impedance |
780±30Ω |
|
Non-linearity |
±1%F.S |
Output impedance |
701±3Ω |
|
Hysteresis |
＜±0.2%F.S |
Insulation resistance |
≥5000MΩ |
|
Repeatability |
＜±0.05%F.S |
Allow excitation voltage |
5～15V/DC |
|
Creep |
＜±0.2%F.S/30min |
Compensated temp. range |
-10℃～+40℃ |
|
Temp. effect on zero |
＜±0.2%/10℃ |
Operating temp. range |
-30℃～+70℃ |
|
Temp. effect onoutput |
＜±0.2%/10℃ |
Safe overload |
120%F.S |
|
Zero balance |
＜±1%F.S |
Ultimate overload |
150%F.S |
|
Connection |
Excitation：+ Red - Black Shield： Thick Yellow Signal： + Green - White |
||
