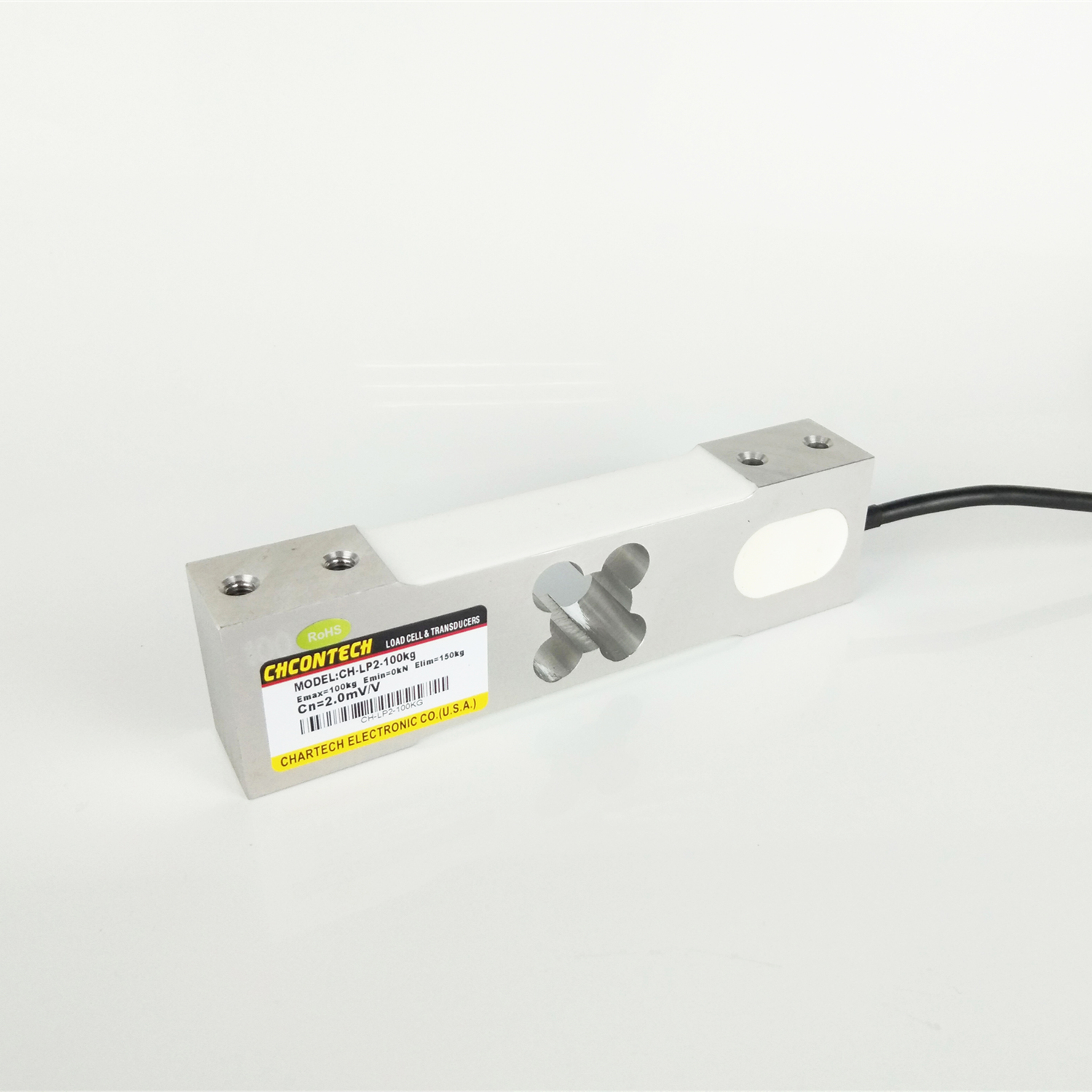

Product name：CH-LP2 Parallel beam sensor
Product features：THE CH-LP2 aluminum parallel beam weighing sensor is of single-point bearing structure, which has been adjusted in four corners to ensure that its output is consistent at all points in the specified loading plane.The structure of the product is simple and easy to use.Suitable for making all kinds of electronic platform scales composed of single sensor.
Range：50N(5kg)、100N(10kg)、150N(15kg)、200N(20kg)、300N(30kg)、400N(40kg)、500N(50kg)、750N(75kg)、1000N(100kg)、2000N(200kg)
Dimensions：
Specifications：
|
Specifications |
|
|
|
|
Rated Output |
2.0mV/V±5% |
Input impedance |
410±15Ω |
|
Non-linearity |
±0.02%F.S |
Output impedance |
350±5Ω |
|
Hysteresis |
＜±0.02%F.S |
Insulation resistance |
≥5000MΩ |
|
Repeatability |
＜±0.02%F.S |
Allow excitation voltage |
5～15V/DC |
|
Creep |
＜±0.02%F.S/30min |
Compensated temp. range |
-10℃～+40℃ |
|
Temp. effect on zero |
＜±0.02%/10℃ |
Operating temp. range |
-30℃～+70℃ |
|
Temp. effect on span |
＜±0.02%/10℃ |
Safe overload |
150%F.S |
|
Zero balance |
＜±1%F.S |
Ultimate overload |
200%F.S |
|
Connection |
Excitation：+ Red - Black Signal： + Green - White Shield： Thick Yellow |
||
